Stainless Steel Cage Hardware

With high tensile strength and excellent corrosion resistance, our stainless steel hardware is purpose-built for the demanding environments of veterinary and animal care facilities. Our electropolished 304 stainless steel doors and laser-cut latches are designed for security, easy cleaning, and long-term durability.

Stainless steel construction also supports compliance with the New Zealand Veterinary Association's BESTPRACTICE® standards.

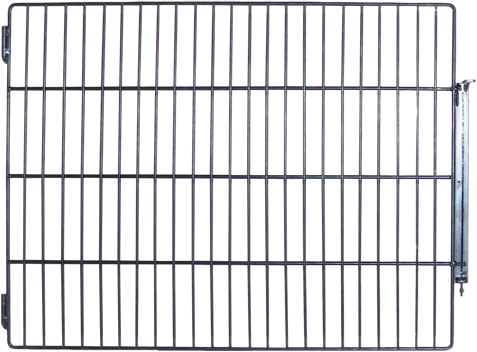

Creature Comfort Cages stainless steel door and latch

Doors

  • Electropolished 304 Stainless Steel: Provides a smooth, hygienic surface that resists corrosion and cleans easily.
  • Rigid Frame Design: Vertical bars with 3-5 horizontal braces for structural integrity.
  • Universal Orientation: Reversible design can be mounted to open either left or right to suit your facility's layout.

Gudgeon Hinges

  • 304 Stainless Steel: Heavy duty 1/4" diameter x 3 1/2" length stainless steel gudgeons handle constant daily use without sagging or wearing.
  • Lift-Off Design: Tube and gudgeon hinge system allows doors to be lifted off completely without tools, for easy cleaning.
  • Simple Installation: Easy screw-in design.

Latches

  • Laser-Cut 304 Stainless Steel: Precision-cut for a smooth, reliable glide and secure catch every time.
  • Single-Hand Operation: Allows staff to easily open or close the cage while safely handling an animal.
  • 2-Point Security Closure: Prevents accidental door lift-off and animal escape risks.
  • Handed Configuration: Available in dedicated left-handed or right-handed configurations.

Cage Door Specifications

Cage
Perimeter Bar Thickness
Vertical Bar Thickness
On-Centre Spacing
Perimeter Bar Thickness: 6.0 mm
Vertical Bar Thickness: 3.5 mm
On-Centre Spacing: 30.0 mm
Perimeter Bar Thickness: 6.0 mm
Vertical Bar Thickness: 3.5 mm
On-Centre Spacing: 30.0 mm
Perimeter Bar Thickness: 7.5 mm
Vertical Bar Thickness: 5.0 mm
On-Centre Spacing: 36.0 mm
Perimeter Bar Thickness: 8.0 mm
Vertical Bar Thickness: 5.0 mm
On-Centre Spacing: 50.0 mm
Perimeter Bar Thickness: 8.0 mm
Vertical Bar Thickness: 5.0 mm
On-Centre Spacing: 50.0 mm
Perimeter Bar Thickness: 8.0 mm
Vertical Bar Thickness: 5.0 mm
On-Centre Spacing: 50.0 mm
